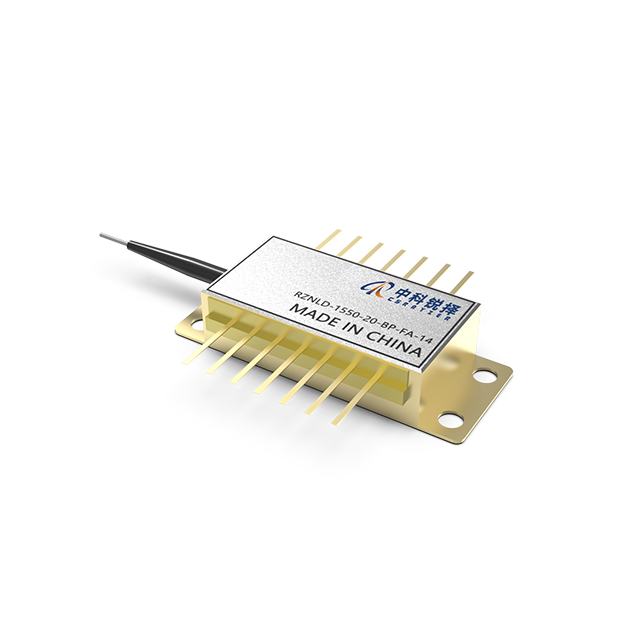

DWDM Laser Diode

The high quality DFB laser diode with butterfly package can meet high power of optical transmitter system. Also, the built-in thermo-electric cooler (TEC) can make the laser diode work properly in various environments.


Availability:



Send Request Download

Features:

High linearity Direct Modulation DFB laser

Butterfly package

Built-in Isolator,TEC,Thermistor

Operating Temperature –20~ +70℃(Optional)

Single-mode/PM fiber pigtail.

OUR FOCUS

Laser Applications
Sensing Applications
Communication Applications

CONTACT US

The core team of the company is composed of experienced academics and industry elites.

Parameter	Symbol	Min	Typ	Max	Unit	Test Conditions
Optical Output Power	P_o	5	--	20	mW	CW，
Threshold Current	I_th	--	8	15	mA	T=25 /45°C
Forward Voltage	V_F	--	1.1	2.0	V
Operating Current	I_op	--	--	120	mA	CW, T=25/45 °C
Center Wavelength	lλc	λc-0.5	λc	λc+0.5	nm	CW, T=25/45 °C
Side-mode Suppression Ratio	SMSR	35	40	--	dB	Iop=70mA
Optical Isolation (Optional)		35			dB
Spectral Width (-20 dB)	Δλ	--	0.1	1.0	nm
Laser line width	ΔλL	--	1	10	MHz	CW, T=25 °C
Wavelength temperature coefficient	△λ/△T		0.08	0.12	nm/°C
Monitor Current	I_mon	50	--	1500	μA	V_R=5 V,
Monitor Dark Current	I_D	--	--	50	nA	V_R=5 V
Thermistor Resistance	RT	9.5	10.0	10.5	KΩ	T=25 °C
Thermistor B-Value		--	3950	--	K	25℃/85℃
Tracking Error	TE	-1.0	--	+1.0	dB	TE=10log(Po(Tc)/Po(25°C)
Polarization extinction ratio（optional）	PER	17	-	-	dB	Slow axis alignment

Parameter	Symbol	Min	Typ	Max	Unit	Test Conditions
Optical Output Power	P_o	5	--	20	mW	CW，
Threshold Current	I_th	--	8	15	mA	T=25 /45°C
Forward Voltage	V_F	--	1.1	2.0	V
Operating Current	I_op	--	--	120	mA	CW, T=25/45 °C
Center Wavelength	lλc	λc-0.5	λc	λc+0.5	nm	CW, T=25/45 °C
Side-mode Suppression Ratio	SMSR	35	40	--	dB	Iop=70mA
Optical Isolation (Optional)		35			dB
Spectral Width (-20 dB)	Δλ	--	0.1	1.0	nm
Laser line width	ΔλL	--	1	10	MHz	CW, T=25 °C
Wavelength temperature coefficient	△λ/△T		0.08	0.12	nm/°C
Monitor Current	I_mon	50	--	1500	μA	V_R=5 V,
Monitor Dark Current	I_D	--	--	50	nA	V_R=5 V
Thermistor Resistance	RT	9.5	10.0	10.5	KΩ	T=25 °C
Thermistor B-Value		--	3950	--	K	25℃/85℃
Tracking Error	TE	-1.0	--	+1.0	dB	TE=10log(Po(Tc)/Po(25°C)
Polarization extinction ratio（optional）	PER	17	-	-	dB	Slow axis alignment
