Hybrid WDM+Isolator

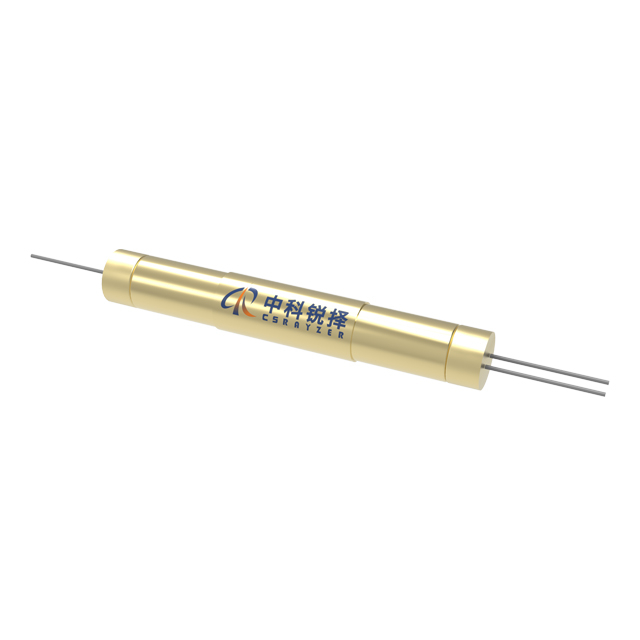

Rayzer’s Hybrid WDM+ISOLATOR+WDM combination packaged component, has high performance optical index, with low insertion loss, high return loss, high channel isolation, high extinction ratio, and high reliability and stability.


Availability:



Send Request Download

Product Description

Parameters		Unit	Values
			Min	Max
Signal channel wavelength		nm	1528	1569
Pump channel wavelength		nm	965	995
Insertion loss	1→3	dB		≤0.5
	1→2			≤1.0
	4→2			≤0.5
polarization dependent loss	1→3	dB		≤0.1
	1→2			≤0.1
	4→2			≤0.1
Wavelength dependent loss	1→3	dB		N/A
	1→2			≤0.2
	4→2			N/A
Temperature dependent loss	1→3	dB		≤0.15
	1→2			≤0.2
	4→2			≤0.15
return loss		dB	≥50
isolation	2→1	dB	≥38
	1→3
	1→2		30
	4→2		21
polarization mode dispersion	1→2	dB		0.05
Tail long degrees		dB	0.9
Fiber Type	Port1	ps	OFS980-16/Hi1060/28E
	Port2		OFS 980-16
	Port3		OFS 980-16
	Port4		OFS 980-16
Fiber Jacket		m	Bare Fiber
Fiber color	Port1	--	Black
	Port2		Black
	Port3		Natural
	Port4		Natural
connectors		--	None
operating temperature		℃	25
Storage temperature		℃	30
Dimension		mm	3.0x25
