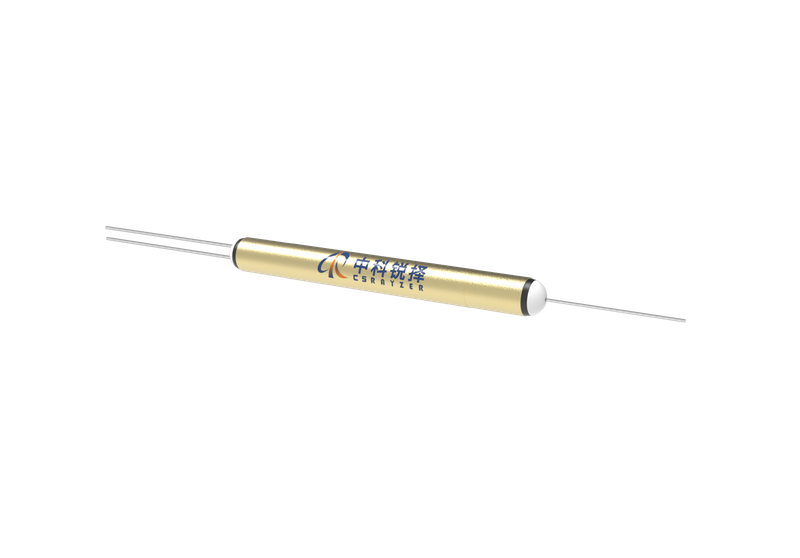

100G DWDM

Related Products

OUR FOCUS

CONTACT US

The core team of the company is composed of experienced academics and industry elites.

Parameter		Unit		Specification
Center Wavelength		nm		ITU C28 ITU C31
Optical Operating Wavelength		nm		C band
Channel Spacing		nm		100GHz
Bandwidth@-0.5dB		nm		≥0.4
Center Wavelength Accuracy		nm		±0.1
Pass Band		nm		± 0.11
Insertion Loss	Pass	Max	dB	1.0
	REF	Max	dB	0.6
Isolation	Adjacent Channel	Min	dB	30
	Non-Adjacent Channel	Min	dB	40
	Reflect Channel	Min	dB	13
Polarization Dependent Loss		Max	dB	0.1
Return Loss		Min	dB	50
Directivity		Min	dB	50
Polarization Mode Dispersion		Max	ps	0.10(DG)
Maximum Power Handling		Max	mW	500（COM）
Package Dimension (Φ*L)		Typ	mm	5.5*35
Fiber Type				G657A1 with 0.9mm loose tube
Connector Type				FC/APC
Fiber Length			m	1
Operating Temperature			℃	-5~+70
Storage Temperature			℃	-40~+85

Parameter		Unit		Specification
Center Wavelength		nm		ITU C28 ITU C31
Optical Operating Wavelength		nm		C band
Channel Spacing		nm		100GHz
Bandwidth@-0.5dB		nm		≥0.4
Center Wavelength Accuracy		nm		±0.1
Pass Band		nm		± 0.11
Insertion Loss	Pass	Max	dB	1.0
	REF	Max	dB	0.6
Isolation	Adjacent Channel	Min	dB	30
	Non-Adjacent Channel	Min	dB	40
	Reflect Channel	Min	dB	13
Polarization Dependent Loss		Max	dB	0.1
Return Loss		Min	dB	50
Directivity		Min	dB	50
Polarization Mode Dispersion		Max	ps	0.10(DG)
Maximum Power Handling		Max	mW	500（COM）
Package Dimension (Φ*L)		Typ	mm	5.5*35
Fiber Type				G657A1 with 0.9mm loose tube
Connector Type				FC/APC
Fiber Length			m	1
Operating Temperature			℃	-5~+70
Storage Temperature			℃	-40~+85
