1550nm PM Fiber SESAM ​

Availability:
Send Request

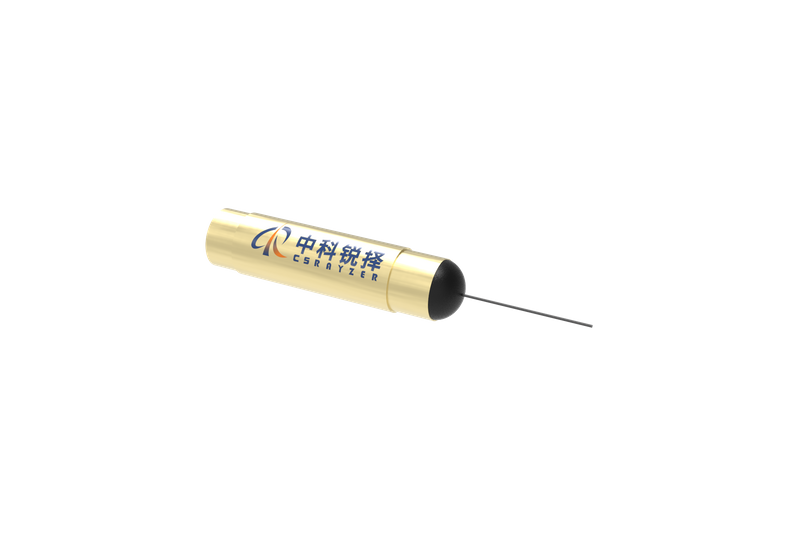

CSRayzer’s Polarization Maintaining Fiber Coupled Semiconductor Saturable Absorber Mirror(SESAM) PMCS Series product, has very good performance of high extinction, low insertion loss and high reliability. It is ideal for ultra-fast fiber lasers.


Parameters

Unit

Values

Center Wavelength

nm

1550

Max. Insertion Loss

dB

1.4

Beam spot size on SESAM surface

μm

20 / 50 / Customized

Focal working distance

mm

3.5

Output Beam Size

μm

20 / 50 / Customized

Extinction Ratio

dB

≥20

Fiber Type

--

PM1550/Specify

Handing Power

mW

500

Working Temperature

℃

-5 to 70

Storage Temperature

℃

-40 to 85

Tensile Load

N

5

*IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.

*Above specifications are for device without connector and may change without notice.
