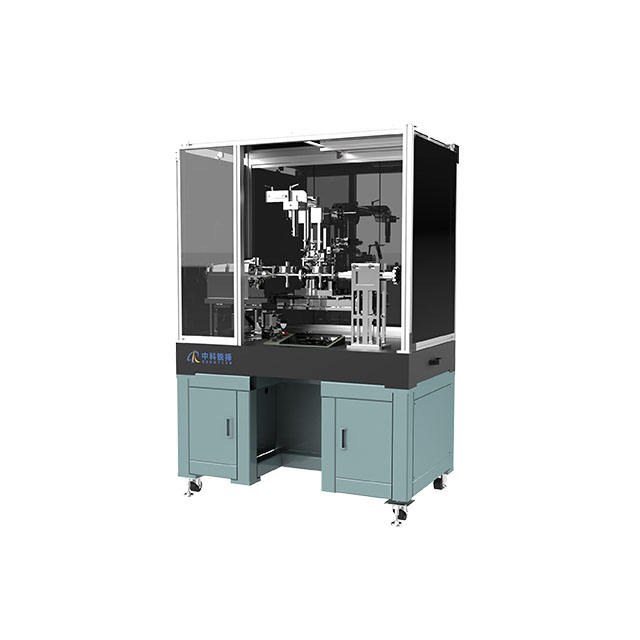

Fiber Coil Winding Machine
Fiber Coil Winding Machine is mainly suitable for winding low, middle and high accuracy FOG Fiber Coil, Hydrophone Fiber Coil, Time-Delay Fiber Coil, etc., and can realize various winding methods such as unipolar, four-pole, eight-pole, and sixteen-pole of optical fiber rings.
Which can support the diameter of optical fiber: Φ0.06 mm~Φ0.40mm (default: 0.12mm-0.16mm, size and size need customized accessories).-
ZKRZ-RHJ6.0
-
CSRAZYER
Main Functions
A variety of winding methods for fiber optic rings can be realized；
The tension control system can carry out precise control of optical fiber tension, and support the display, saving and reading of tension data.
Real-time meter counting and turn counting functions, support the saving and reading of fiber length and number of turns.
Visual image observation system has its own lighting system, which supports manual adjustment of brightness and darkness, and can observe the fiber discharge status in real time during the winding process.
The equipment structure is ergonomic, easy to operate and maintain.
Main Functions
A variety of winding methods for fiber optic rings can be realized；
The tension control system can carry out precise control of optical fiber tension, and support the display, saving and reading of tension data.
Real-time meter counting and turn counting functions, support the saving and reading of fiber length and number of turns.
Visual image observation system has its own lighting system, which supports manual adjustment of brightness and darkness, and can observe the fiber discharge status in real time during the winding process.
The equipment structure is ergonomic, easy to operate and maintain.
