A、Temperature control system: its performance indicators operate normally without turning on the lighting system.

①　Supply voltage：220V 50HZ

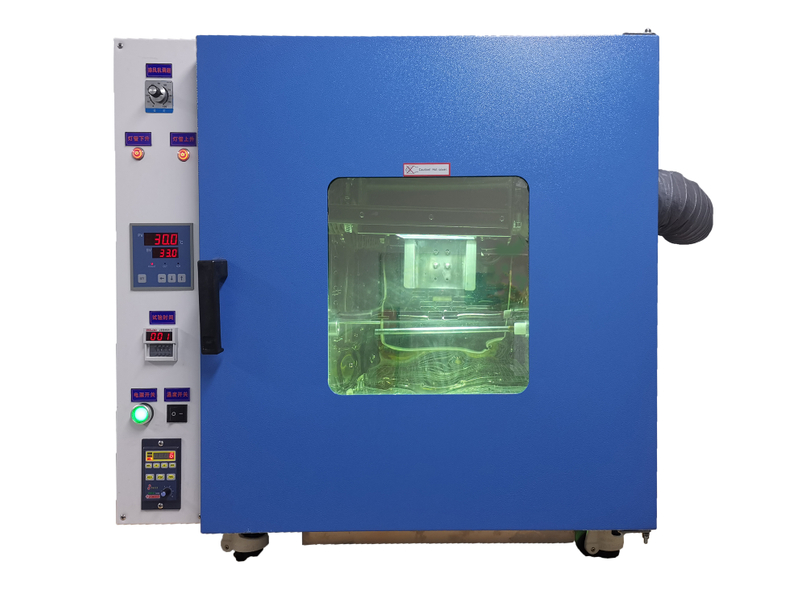

②　Studio size of UV curing oven：550*390*550（width*depth*height mm）

③　Rated power：1350W

④　Temperature fluctuations：±3℃

⑤　Temperature range: room temperature +10°C-60°C (adjustable), temperature under light<45±5°C

B、Circulatory system: internal air duct, back return air

C、Exhaust system: (independently controlled, relative light delay off)

Exhaust motor power：85W(The wind speed is infinitely adjustable)

D、UV illumination system：

①　Number of UV lamps: 1

②　UV lamp power rating：1000W

③　UV wave peak：365nm

④　Ultraviolet band range：UVA 320～450nm

⑤　Lamp length：230mm

⑥　Lamp length：230mm Illuminated area180mm

⑦　Shade size：width150mm，height 105m，length265mm

⑧　Lampshade material: finned heat dissipation aluminum, two reflectors, equipped with filter quartz glass below
