200M InGaAs APD Preamplifier Module

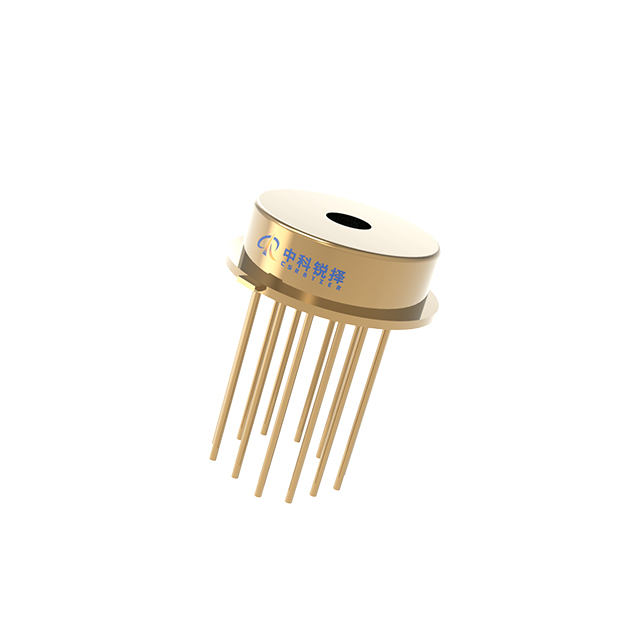

The CR200AH-1550-100M-00 includes a 200um InGaAs Avalanche Photodiode with a hybrid preamplifier for the use in high speed, ultra-low light detection, in laser range finding, LIDAR and free space communication.


Availability:



Send Request

Features

● Built in 200um InGaAs+TIA

● High sensitivity：≥400kV/W

● High bandwidth：100Mhz

● Wavelength range:1100~1700nm

● Low noise and high reliability

● TO8 package with flat window

● Enhanced overload protection

Applications

● LIDAR

● Laser range finding

● Free space optical communication (FSO)

Related Products

800μm SI APD Preamplifier Module

500μm InGaAs APD Preamplifier Module

OUR FOCUS

Laser Applications
Sensing Applications
Communication Applications

CONTACT US

The core team of the company is composed of experienced academics and industry elites.

Parameter	Symbol	Value			Unit	Test conditions
Parameter	Symbol	Min	Typ	Max	Unit	Test conditions
Response Spectrum	λ	1100~1700			nm
Active Diameter	D		200		um
Reverse breakdown voltage	VBR	30		70	V
Operating voltage	VR	VR-3			V	M=10
Responsivity	Rv	400			kV/W	M=10, 1.55um @τ=5ns
Dynamic range	DY	25			dB	M=10, 1.55um @τ=5ns
-3dB bandwidth	BW		100		Mhz	M=10, 1.55um @τ=100ns
Rise/Fall time	tr		3.5		ns	M=10, 1.55um @τ=100ns
Noise Equivalent Power	NEP		120		fW/√Hz	M=10 ， f=100kHz, △ =1hz
Output impedance	RO		50		Ω
Output Voltage Swing	VO	0.7			V
Positive Supply Current	ICC			30	mA
Negative Supply Current	IEE			10	mA	50Ω Load
Temperature coefficient of Vop for constant gain	γ	0.12			V/ o C	-45 ～ 85℃
Concentricity	△ D			20	um

Parameter	Symbol	Value			Unit	Test conditions
Parameter	Symbol	Min	Typ	Max	Unit	Test conditions
Response Spectrum	λ	1100~1700			nm
Active Diameter	D		200		um
Reverse breakdown voltage	VBR	30		70	V
Operating voltage	VR	VR-3			V	M=10
Responsivity	Rv	400			kV/W	M=10, 1.55um @τ=5ns
Dynamic range	DY	25			dB	M=10, 1.55um @τ=5ns
-3dB bandwidth	BW		100		Mhz	M=10, 1.55um @τ=100ns
Rise/Fall time	tr		3.5		ns	M=10, 1.55um @τ=100ns
Noise Equivalent Power	NEP		120		fW/√Hz	M=10 ， f=100kHz, △ =1hz
Output impedance	RO		50		Ω
Output Voltage Swing	VO	0.7			V
Positive Supply Current	ICC			30	mA
Negative Supply Current	IEE			10	mA	50Ω Load
Temperature coefficient of Vop for constant gain	γ	0.12			V/ o C	-45 ～ 85℃
Concentricity	△ D			20	um
