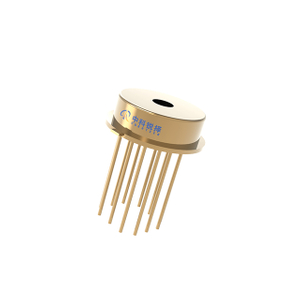

800μm SI APD Preamplifier Module

The CR800AH-1064-150M includes a 800um SI Avalanche Photodiode with a hybrid preamplifier for the use in high speed, ultra-low light detection, in laser range finding, LIDAR and free space communication.


Availability:



Send Request

Features

● Built in 800um SI APD+TIA

● High sensitivity：≥250kV/W

● High bandwidth：150Mhz

● Wavelength range:400~1100nm

● Low noise and high reliability

● TO8 package with flat window

● Enhanced overload protection

Applications

● LIDAR

● Laser range finding

● Free space optical communication (FSO)

Related Products

500μm InGaAs APD Preamplifier Module

200M InGaAs APD Preamplifier Module

Narrow-line Width Laser Module

Semiconductor narrow linewidth laser

OUR FOCUS

Laser Applications
Sensing Applications
Communication Applications

CONTACT US

The core team of the company is composed of experienced academics and industry elites.

Parameter	Symbol	Value			Unit	Test conditions
Parameter	Symbol	Min	Typ	Max	Unit	Test conditions
Response Spectrum	λ	400~1100			nm
Active Diameter	D		800		um
Reverse breakdown voltage	V_BR	350		460	V
Operating voltage	V_R	0.95×V_BR			V	M=100
Responsivity	R_V		250		kV/W	M=100, 1.064um@τ=10ns
Dynamic range	DY	25			dB	M=100, 1.064um@τ=100ns
-3dB bandwidth	BW		150		Mhz
Rise/Fall time	t_r		2.3		ns	10%-90%
Noise Equivalent Power	NEP		150		fW/√Hz	M=10，f=100kHz, △=1hz
Output impedance	R_O		50		Ω
Output Voltage Swing	V_O	0.7			V
Positive Supply Current	I_CC			30	mA
Negative Supply Current	I_EE			10	mA	50Ω Load
Temperature coefficient of V_op for constant gain	γ		2.4	3.0	V/^oC	-45～+85℃
Concentricity	△D			30	um

Parameter	Symbol	Value			Unit	Test conditions
Parameter	Symbol	Min	Typ	Max	Unit	Test conditions
Response Spectrum	λ	400~1100			nm
Active Diameter	D		800		um
Reverse breakdown voltage	V_BR	350		460	V
Operating voltage	V_R	0.95×V_BR			V	M=100
Responsivity	R_V		250		kV/W	M=100, 1.064um@τ=10ns
Dynamic range	DY	25			dB	M=100, 1.064um@τ=100ns
-3dB bandwidth	BW		150		Mhz
Rise/Fall time	t_r		2.3		ns	10%-90%
Noise Equivalent Power	NEP		150		fW/√Hz	M=10，f=100kHz, △=1hz
Output impedance	R_O		50		Ω
Output Voltage Swing	V_O	0.7			V
Positive Supply Current	I_CC			30	mA
Negative Supply Current	I_EE			10	mA	50Ω Load
Temperature coefficient of V_op for constant gain	γ		2.4	3.0	V/^oC	-45～+85℃
Concentricity	△D			30	um
