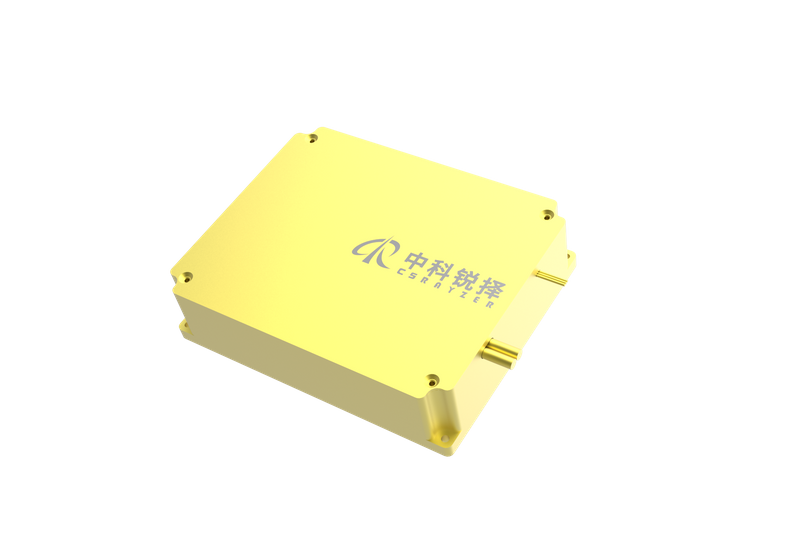

CSRayzer’s high power EYDFA product has been widely used in CATV system and FTTH. High Power EYDFA uses single mode laser and multi-mode pump laser to provide energy. The max high output power can reach up to 40dBm. The product can be configured in ACC or APC work mode through GUI .Using the high realibility temperaure-controlling technology make the products have excellent thermal performance under wide temperature range.
Product Feature
1) High power output
2) APC/ACC operation mode
3) High stability and reliability
4) Customizable
Main Application
1) CATV
2) FTTH
3) Doppler laser radar system(PM YEDFA)
4) College and research institue
CSRayzer’s high power EYDFA product has been widely used in CATV system and FTTH. High Power EYDFA uses single mode laser and multi-mode pump laser to provide energy. The max high output power can reach up to 40dBm. The product can be configured in ACC or APC work mode through GUI .Using the high realibility temperaure-controlling technology make the products have excellent thermal performance under wide temperature range.
Product Feature
1) High power output
2) APC/ACC operation mode
3) High stability and reliability
4) Customizable
Main Application
1) CATV
2) FTTH
3) Doppler laser radar system(PM YEDFA)
4) College and research institue
Parameter | Unit | Min | Type | Max |
Wavelength | nm | 1540 | 1550 | 1565 |
Output port number | 1 | 8 | ||
Input power | dBm | -3 | 10 | |
Output power | dBm | 13 | 33 | 37 |
Output power/channel | dBm | 13 | 23 | 26 |
Noise Figure | dB | 5.5 | 6 | |
Operation temperature | ℃ | 0 | 40 | |
Storage temperature | ℃ | -40 | 85 | |
Supply voltage | V | 5 or 12 | ||
Power consumption | W | 60 | 120 | |
Pigtail Length | cm | 50±2 | ||
Pigtail type | FC/APC, 900um |
Parameter | Unit | Min | Type | Max |
Wavelength | nm | 1540 | 1550 | 1565 |
Output port number | 1 | 8 | ||
Input power | dBm | -3 | 10 | |
Output power | dBm | 13 | 33 | 37 |
Output power/channel | dBm | 13 | 23 | 26 |
Noise Figure | dB | 5.5 | 6 | |
Operation temperature | ℃ | 0 | 40 | |
Storage temperature | ℃ | -40 | 85 | |
Supply voltage | V | 5 or 12 | ||
Power consumption | W | 60 | 120 | |
Pigtail Length | cm | 50±2 | ||
Pigtail type | FC/APC, 900um |
