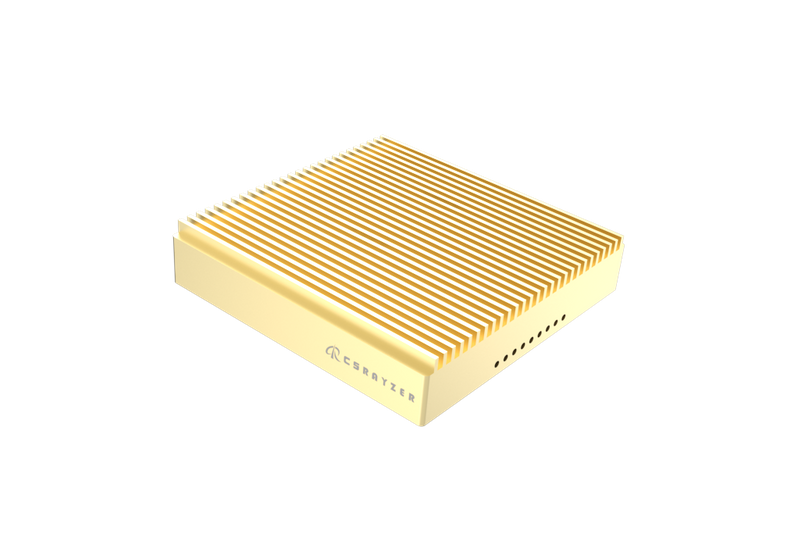

The company's Raman fiber amplifiers are widely used in wavelength division multiplexing fiber optic communication systems or sensing systems, and can be integrated into optical amplifier cards and racks according to customer applications. At the same time, it provides multiple operating modes such as automatic gain control, automatic power control, and automatic current control. Customers can configure through the upper computer, using high-performance temperature control technology, and stable output performance.
The company's Raman fiber amplifiers are widely used in wavelength division multiplexing fiber optic communication systems or sensing systems, and can be integrated into optical amplifier cards and racks according to customer applications. At the same time, it provides multiple operating modes such as automatic gain control, automatic power control, and automatic current control. Customers can configure through the upper computer, using high-performance temperature control technology, and stable output performance.
参数Parameter | 单位Unit | 最小值Min | 典型值Typical | 最大值Max |
波长Wavelength | nm | 1528.77 | 1550 | 1567.13 |
通道数Number of channels | / | 1 | 96 | |
增益Gain | dB | 15 | ||
平坦度Flatness | dB | 1 | 1.5 | |
输入功率范围Input power range | dBm | -45 | 0 | |
输出功率范围Input power range | mW | 600 | ||
噪声指数Noise index | dB | -3 | 0 | 3 |
工作温度Operating temperature | ℃ | -5 | 60 | |
存储温度Storage temperature | ℃ | -40 | 85 | |
电源Power supply | V | 4.75 | 5 | 5.25 |
功耗Power consumption | W | 60 | ||
尾纤长度Tail fiber length | cm | 100±2,可指定can be specified | ||
尾纤类型Pigtail type | LC/APC,可指定can be specified |
