Narrow Line-width DFB Butterfly Diode

The high quality pump laser diode with butterfly package can meet high power of optical transmitter system. Also, the built-in thermo-electric cooler (TEC) can make the laser diode work properly in various environments.


Availability:



Send Request

Features:

Multi-Quantum Well (MQW) Distributed Feedback (DFB) lasers
Butterfly package
Built-in thermistor, and TEC
Operating Temperature –20~ +70℃
Single-mode/PM fiber pigtail.

Related Products

Semi-conductor Optical Amplifier

Wide Band Superluminescent LED

PUMP Butterfly Modules

SLED Butterfly Device 14pin

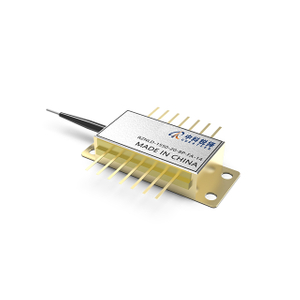

DWDM Laser Diode

OUR FOCUS

Laser Applications
Sensing Applications
Communication Applications

CONTACT US

The core team of the company is composed of experienced academics and industry elites.

Parameter	Symbol	Min	Typ	Max	Unit	Test Conditions
Optical Output Power	P_o	--	--	60	mW	CW，
Threshold Current	I_th	--	15	25	mA	T=25 °C
Forward Voltage	V_F	--	1.5	3	V
Operating Current	I_op	--	--	400	mA	CW, T=25 °C
Center Wavelength	lλc	λc-5	λc	λc+5	nm	CW, T=25 °C
Side-mode Suppression Ratio	SMSR	35	40	--	dB	Iop=30mA
Optical Isolation (Optional)		35	--	--	dB
Laser line width	ΔλL	--	--	10	MHz	CW, T=25 °C
Spectral Width (-20 dB)	Δλ	--	0.1	1.0	nm
Wavelength temperature coefficient	△λ/△T		0.08	0.12	nm/°C
Monitor Current	I_mon	50	--	1500	μA	V_R=5 V,
Thermistor Resistance	RT	9.5	10.0	10.5	KΩ	T=25 °C
Thermistor B-Value		--	3950	--	K	25℃/85℃
Polarization extinction ratio（optional）	PER	17	-	-	dB	Slow axis alignment

Parameter	Symbol	Min	Typ	Max	Unit	Test Conditions
Optical Output Power	P_o	--	--	60	mW	CW，
Threshold Current	I_th	--	15	25	mA	T=25 °C
Forward Voltage	V_F	--	1.5	3	V
Operating Current	I_op	--	--	400	mA	CW, T=25 °C
Center Wavelength	lλc	λc-5	λc	λc+5	nm	CW, T=25 °C
Side-mode Suppression Ratio	SMSR	35	40	--	dB	Iop=30mA
Optical Isolation (Optional)		35	--	--	dB
Laser line width	ΔλL	--	--	10	MHz	CW, T=25 °C
Spectral Width (-20 dB)	Δλ	--	0.1	1.0	nm
Wavelength temperature coefficient	△λ/△T		0.08	0.12	nm/°C
Monitor Current	I_mon	50	--	1500	μA	V_R=5 V,
Thermistor Resistance	RT	9.5	10.0	10.5	KΩ	T=25 °C
Thermistor B-Value		--	3950	--	K	25℃/85℃
Polarization extinction ratio（optional）	PER	17	-	-	dB	Slow axis alignment
