Features:

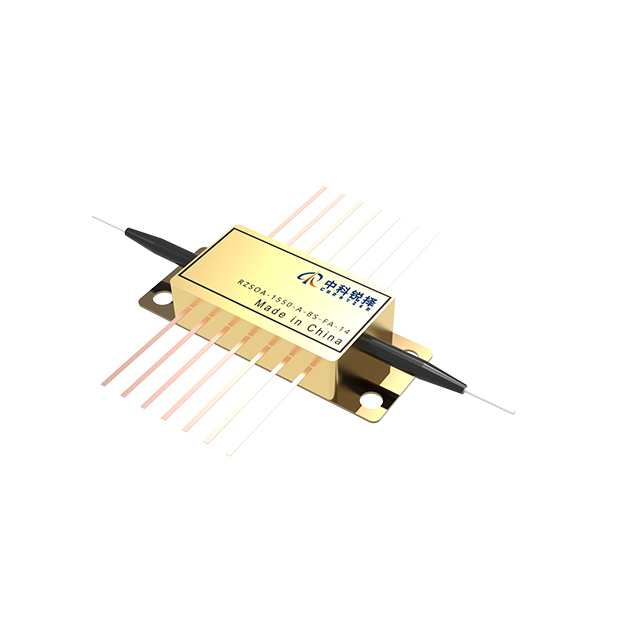

14-pin butterfly package(Shunt Clips - required to protect the butterfly package pins)
Built-in thermistor and TEC
Single mode input /output
Operating Temperature –20~ +70℃
Low chip-to-fiber coupling loss
Single-mode/PM fiber pigtail
Features:
14-pin butterfly package(Shunt Clips - required to protect the butterfly package pins)
Built-in thermistor and TEC
Single mode input /output
Operating Temperature –20~ +70℃
Low chip-to-fiber coupling loss
Single-mode/PM fiber pigtail
Parameter | Symbol | Min | Typ | Max | Unit | Test Conditions |
Saturation output power | dBm | 18 | -- | -- | dBm | T=25 °C |
Peak gain | dB | 25 | -- | -- | dB | T=25 °C |
ASE ripple | dB | -- | -- | 2 | dB | T=25 °C |
Forward Voltage | VF | -- | 1.3 | 1.7 | V | T=25 °C |
Center Wavelength | λc | 1540 | 1550 | 1560 | nm | CW, T=25 °C |
Wavelength Band | nm | 1500 | 1550 | 1600 | nm | T=25 °C |
Noise Figure | NF | -- | -- | 8 | dB | T=25 °C |
Polarization extinction ratio | PER | 15 | -- | -- | dB | Slow axis alignment |
Spectral Width | nm | 70 | -- | -- | nm | T=25 °C |
Thermistor Resistance | RT | 9.5 | 10.0 | 10.5 | KΩ | T=25 °C |
Thermistor B-Value | -- | 3930 | -- | K | 25℃/85℃ |
