Features:
a. High power output
b. Metal-coupled and hermetic package
c. TEC inside
d. Polarization-maintaining or single-mode optical fiber

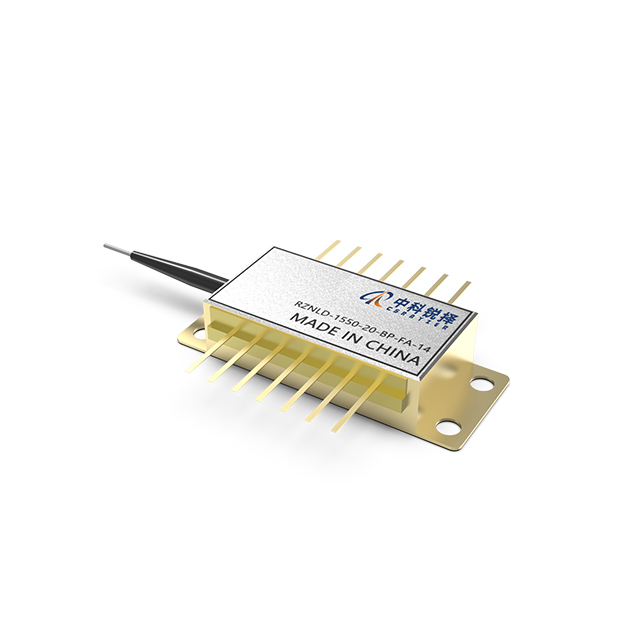

e. 14pin butterfly package
Applications
a. Fiber-optic gyroscope
b. Optic test
c. Optical fiber transmission system
d. Fiber-optic sensor
e. OCT
Features:
a. High power output
b. Metal-coupled and hermetic package
c. TEC inside
d. Polarization-maintaining or single-mode optical fiber
e. 14pin butterfly package
Applications
a. Fiber-optic gyroscope
b. Optic test
c. Optical fiber transmission system
d. Fiber-optic sensor
e. OCT
Parameter | Symbol | Min | Typ | Max | Unit | Test Conditions |
Optical Output Power | Po | 1 | -- | 10.0 | mW | CW,T=25℃ |
Forward Voltage | VF | -- | -- | 2.5 | V | CW,T=25℃ |
Center Wavelength | λc | 1290 1535 | -- | 1330 1565 | nm | CW,T=25℃ |
Bandwidth FWHM | Bw | 30 | 40 | - | nm | CW,T=25℃ |
Spectral Ripple | -- | -- | 0.2 | dB | CW,T=25℃ | |
Polarization Extinction Ratio | PER | 15 | -- | -- | dB | High Polarization Rate |
Thermistor Resistance | RT | 9.5 | 10.0 | 10.5 | KΩ | T=25 °C |
Thermistor B-Value | -- | 3950 | -- | K | 25℃/85℃ |
