Free Space Isolator

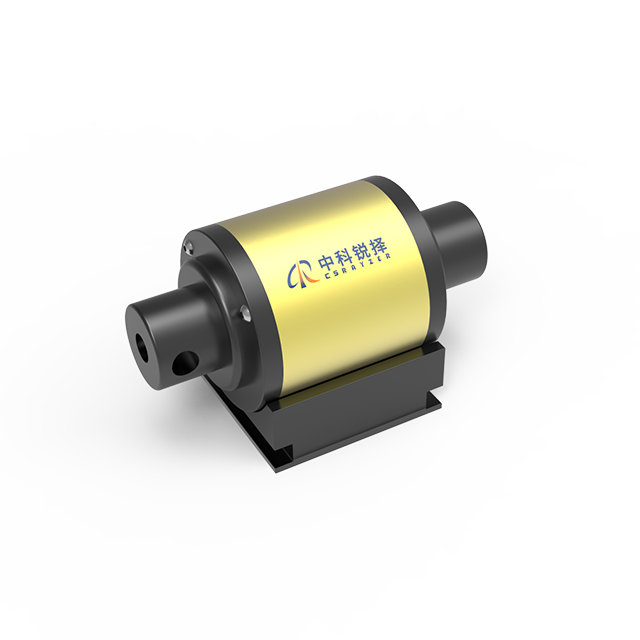

CSRayzer’s High Power Free Space Isolator(HIO) series product, which also named Faraday Isolator, is used for avoiding deleterious effects of back reflections in laser. These Isolator has the high damage threshold and high transmission and high isolation in customized 780-1100nm wavelength range. It is ideal for ultra-fast fiber laser, solid-state laser, multi-level laser amplifier, Optical parametric oscillator Ring laser, Erbium-doped fiber amplifier, or seed injecting laser and etc.
Availability:

Specification

Parameters

Unit

Values

Center Wavelength

nm

780/808/850/920/1030/1064

Operating Wavelength Range

nm

±20

Clear Aperture

mm

1.2/2.5/3/5/6/7/10/12/15/20/25/45

Extinction

dB

≥30

Isolation

dB

≥30

Transmission

%

≥98%

Handing Power

W

5/10/20/50/100/Specify

Damage threshold

J/cm²

10@10ns

Working Temperature

0 to 60

Storage Temperature

-20 to 70


Ordering Information


HIO-①-②-③

①Clear Aperture

②Central Wavelength

③Handing Power

2.5-2.5mm

780-780nm

HP-High Power

3-3mm

920-920nm

LP-Lower Power

5-5mm

1064-1064nm


S-Specify

S-Specify
